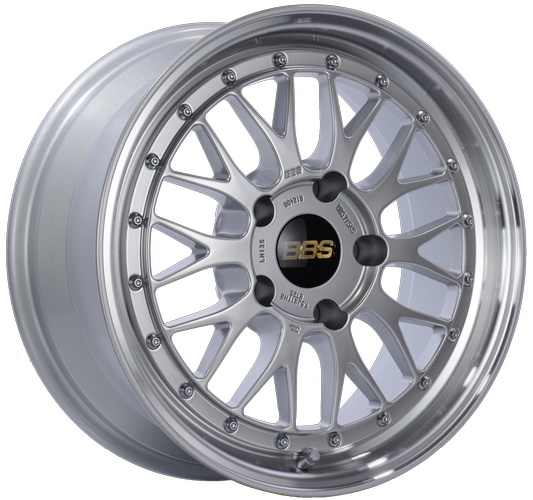

- LM 135
LM 136
LM 198
LM 276
LM 276
LM 077
LM 086
LM 114H
LM 114H
LM 115
LM 115
LM 265
LM 265
LM 265
LM 266
LM 266
LM 277
LM 277
LM 277
LM 286
LM 286
LM 420
LM 420
LM078
LM 118H
LM 119H
LM 170
LM 224H
LM 228
LM 249
LM 249
LM 249
LM 259
LM 259
LM 269
LM 269
LM 272
LM 272
LM 272
LM 278
LM 278
LM 278
LM 279
LM 279
LM 280
LM 280
LM 280
LM 281
LM 281
LM 281
LM 282
LM 287
LM 287
LM 287 DBDB
LM 287 DSDB
LM 287 GLDB
LM 403
LM 403
LM 404
LM 404
LM 411
LM 411
LM 412
LM 412
LM 415
LM 415
LM 415 DBDB
LM 415 DSDB
LM 415 GLDB
LM 431
LM 431
LM 434
LM 434
LM 434
LM 434
LM 434
LM 435
LM 435
LM 435
LM 435
LM 435
LM424
LM424
LM 186
LM 225
LM 225
LM 226
LM 226
LM 229
LM 230
LM 238
LM 238
LM 239
LM 239
LM 256
LM 273
LM 273
LM 283
LM 283
LM 284
LM 284
LM 289
LM 291- LM 291
LM 297
LM 297
LM 407
LM 407
LM 408
LM 408
LM 436
LM 436
LM 436
LM 436
LM 436
LM 437
LM 437
LM 437
LM 437
LM 437
LM 451
LM 451
LM 452
LM 452
LM 260
LM 260
LM 261
LM 261
LM 409
LM 409
LM 410
LM 410
LM
Wheel Technology:
2-Piece Die Forged Aluminum Wheel - Weight optimized by FEM analysis
Finish: Diamond Silver painted center, diamond-cut rim, clear protective top coat.
Details:
| Part / Finish | Size | Bolt Circle | ET | Wt. (lbs) | CB | MSRP |
|---|---|---|---|---|---|---|
| LM 135 - DSPK | 17 x 7.5 | 5-130 | 28 | 20.6 | 71.6 | $840.00 |
| LM 136 - DSPK | 17 x 9 | 5-130 | 17 | 21.44 | 71.6 | $885.00 |
| LM 198 - DSPK | 17 x 7.5 | 4-100 | 40 | 18.8 | PFS | $840.00 |
| LM 276 - DSPK | 17 x 8.5 | 5-120 | 18 | PFS | $860.00 | |
| LM 276 - GPK | 17 x 8.5 | 5-120 | 18 | PFS | $860.00 | |
| LM 077 - DBPK | 18 x 9 | 5-114.3 | 42 | 22.4 | PFS | $1,010.00 |
| LM 086 - DSPK | 18 x 10 | 5-114.3 | 20 | PFS | $1,020.00 | |
| LM 114H - DBPK | 18 x 8.5 | 5-114.3 | 38 | 21.44 | PFS | $1,000.00 |
| LM 114H - DSPK | 18 x 8.5 | 5-114.3 | 38 | 21.44 | PFS | $1,000.00 |
| LM 115 - DBPK | 18 x 9.5 | 5-114.3 | 38 | 21.9 | PFS | $940.00 |
| LM 115 - DSPK | 18 x 9.5 | 5-114.3 | 38 | 21.9 | PFS | $1,010.00 |
| LM 265 - DSPK | 18 x 8.5 | 5-130 | 56 | 23.2 | 71.6 | $1,000.00 |
| LM 265 - GPK | 18 x 8.5 | 5-130 | 56 | 23.2 | 71.6 | $1,000.00 |
| LM 265 - DB-DB | 18 x 8.5 | 5-130 | 56 | 23.2 | 71.6 | $1,000.00 |
| LM 266 - DSPK | 18 x 10 | 5-130 | 65 | 24.3 | 71.6 | $1,020.00 |
| LM 266 - GPK | 18 x 10 | 5-130 | 65 | 24.3 | 71.6 | $1,020.00 |
| LM 277 - DSPK | 18 x 11 | 5-130 | 56 | 26 | 71.6 | $1,055.00 |
| LM 277 - GPK | 18 x 11 | 5-130 | 56 | 26 | 71.6 | $1,055.00 |
| LM 277 - DB-DB | 18 x 11 | 5-130 | 56 | 26 | 71.6 | $1,055.00 |
| LM 286 - DSPK | 18 x 10 | 5-130 | 50 | 24.8 | 71.6 | $1,020.00 |
| LM 286 - GPK | 18 x 10 | 5-130 | 50 | 24.8 | 71.6 | $1,020.00 |
| LM 420 - DBPK | 18 x 8.5 | 5-112 | 38 | 22.5 | PFS | $1,000.00 |
| LM 420 - DSPK | 18 x 8.5 | 5-112 | 38 | 22.5 | PFS | $1,000.00 |
| LM078 - DBPK | 18 x 8 | 5-114.3 | 35 | PFS | $945.00 | |
| LM 118H - DSPK | 19 x 9 | 5-114.3 | 38 | 24.1 | PFS | $1,220.00 |
| LM 119H - DSPK | 19 x 10 | 5-114.3 | 40 | 24.8 | PFS | $1,260.00 |
| LM 170 - DSPK | 19 x 10 | 5-130 | 45 | 25.9 | 71.6 | $1,260.00 |
| LM 224H - DSPK | 19 x 11 | 5-130 | 63 | 25.4 | 71.6 | $1,300.00 |
| LM 228 - DSPK | 19 x 9.5 | 5-120 | 35 | 24.2 | PFS | $1,230.00 |
| LM 249 - DBPK | 19 x 8.5 | 5-112 | 48 | 23.4 | PFS | $1,210.00 |
| LM 249 - DSPK | 19 x 8.5 | 5-112 | 48 | 23.4 | PFS | $1,210.00 |
| LM 249 - GPK | 19 x 8.5 | 5-112 | 48 | 23.4 | PFS | $1,210.00 |
| LM 259 - DBPK | 19 x 9.5 | 5-120 | 48 | PFS | $1,230.00 | |
| LM 259 - DSPK | 19 x 9.5 | 5-120 | 48 | PFS | $1,230.00 | |
| LM 269 - DBPK | 19 x 8.5 | 5-112 | 32 | PFS | $1,210.00 | |
| LM 269 - DSPK | 19 x 8.5 | 5-112 | 32 | PFS | $1,210.00 | |
| LM 272 - DBPK | 19 x 10 | 5-120 | 25 | PFS | $1,260.00 | |
| LM 272 - DSPK | 19 x 10 | 5-120 | 25 | PFS | $1,260.00 | |
| LM 272 - GPK | 19 x 10 | 5-120 | 25 | PFS | $1,260.00 | |
| LM 278 - DBPK | 19 x 8.5 | 5-120 | 32 | PFS | $1,210.00 | |
| LM 278 - DSPK | 19 x 8.5 | 5-120 | 32 | PFS | $1,210.00 | |
| LM 278 - GPK | 19 x 8.5 | 5-120 | 32 | PFS | $1,210.00 | |
| LM 279 - DBPK | 19 x 9.5 | 5-112 | 32 | PFS | $1,230.00 | |
| LM 279 - DSPK | 19 x 9.5 | 5-112 | 32 | PFS | $1,230.00 | |
| LM 280 - DBPK | 19 x 9.5 | 5-120 | 32 | PFS | $1,230.00 | |
| LM 280 - DSPK | 19 x 9.5 | 5-120 | 32 | PFS | $1,230.00 | |
| LM 280 - GPK | 19 x 9.5 | 5-120 | 32 | PFS | $1,230.00 | |
| LM 281 - DBPK | 19 x 11 | 5-120 | 25 | PFS | $1,300.00 | |
| LM 281 - DSPK | 19 x 11 | 5-120 | 25 | PFS | $1,300.00 | |
| LM 281 - GPK | 19 x 11 | 5-120 | 25 | PFS | $1,300.00 | |
| LM 282 - DSPK | 19 x 11 | 5-130 | 50 | 27.1 | 71.6 | $1,300.00 |
| LM 287 - DSPK | 19 x 8.5 | 5-130 | 50 | 71.6 | $1,210.00 | |
| LM 287 - MBZ | 19 x 8.5 | 5-130 | 50 | 71.6 | $1,260.00 | |
| LM 287 DBDB - DB-DB | 19 x 8.5 | 5-130 | 50 | 71.6 | $1,210.00 | |
| LM 287 DSDB - DS-DB | 19 x 8.5 | 5-130 | 50 | 71.6 | $1,210.00 | |
| LM 287 GLDB - GL-DB | 19 x 8.5 | 5-130 | 50 | 71.6 | $1,210.00 | |
| LM 403 - DBPK | 19 x 9 | 5-120 | 27 | 25.3 | PFS | $1,220.00 |
| LM 403 - DSPK | 19 x 9 | 5-120 | 27 | 25.3 | PFS | $1,220.00 |
| LM 404 - DBPK | 19 x 10 | 5-120 | 37 | 25.4 | PFS | $1,260.00 |
| LM 404 - DSPK | 19 x 10 | 5-120 | 37 | 25.4 | PFS | $1,260.00 |
| LM 411 - DBPK | 19 x 8 | 5-120 | 40 | 24.7 | PFS | $1,200.00 |
| LM 411 - DSPK | 19 x 8 | 5-120 | 40 | 24.7 | PFS | $1,200.00 |
| LM 412 - DBPK | 19 x 9 | 5-120 | 44 | 25.1 | PFS | $1,220.00 |
| LM 412 - DSPK | 19 x 9 | 5-120 | 44 | 25.1 | PFS | $1,220.00 |
| LM 415 - DSPK | 19 x 12 | 5-130 | 44 | 27.3 | 71.6 | $1,360.00 |
| LM 415 - MBZ | 19 x 12 | 5-130 | 44 | 27.3 | 71.6 | $1,410.00 |
| LM 415 DBDB - DB-DB | 19 x 12 | 5-130 | 44 | 71.6 | $1,360.00 | |
| LM 415 DSDB - DS-DB | 19 x 12 | 5-130 | 44 | 71.6 | $1,360.00 | |
| LM 415 GLDB - GL-DB | 19 x 12 | 5-130 | 44 | 71.6 | $1,360.00 | |
| LM 431 - DBPK | 19 x 8.5 | 5-120 | 18 | 23.9 | PFS | $1,210.00 |
| LM 431 - DSPK | 19 x 8.5 | 5-120 | 18 | 23.9 | PFS | $1,210.00 |
| LM 434 - DBPK | 19 x 9.5 | 5-120 | 22 | PFS | $1,230.00 | |
| LM 434 - DSPK | 19 x 9.5 | 5-120 | 22 | PFS | $1,230.00 | |
| LM 434 - DB-DB | 19 x 9.5 | 5-120 | 22 | PFS | $1,230.00 | |
| LM 434 - DB-BK | 19 x 9.5 | 5-120 | 22 | PFS | $1,230.00 | |
| LM 434 - MBZ | 19 x 9.5 | 5-120 | 22 | PFS | $1,280.00 | |
| LM 435 - DBPK | 19 x 11 | 5-120 | 37 | PFS | $1,300.00 | |
| LM 435 - DSPK | 19 x 11 | 5-120 | 37 | PFS | $1,300.00 | |
| LM 435 - DB-DB | 19 x 11 | 5-120 | 37 | PFS | $1,300.00 | |
| LM 435 - DB-BK | 19 x 11 | 5-120 | 37 | PFS | $1,300.00 | |
| LM 435 - MBZ | 19 x 11 | 5-120 | 37 | PFS | $1,350.00 | |
| LM424 - DBPK | 19 x 10 | 5-112 | 50 | 66.6 | $1,260.00 | |
| LM424 - DSPK | 19 x 10 | 5-112 | 50 | 66.6 | $1,260.00 | |
| LM 186 - DSPK | 20 x 10 | 5-114.3 | 38 | 25.3 | PFS | $1,490.00 |
| LM 225 - DBPK | 20 x 9 | 5-120 | 15 | 26.4 | PFS | $1,440.00 |
| LM 225 - DSPK | 20 x 9 | 5-120 | 15 | 26.4 | PFS | $1,440.00 |
| LM 226 - DBPK | 20 x 10 | 5-120 | 20 | 26.7 | PFS | $1,490.00 |
| LM 226 - DSPK | 20 x 10 | 5-120 | 20 | 26.7 | PFS | $1,490.00 |
| LM 229 - DSPK | 20 x 8.5 | 5-120 | 32 | 26.5 | PFS | $1,420.00 |
| LM 230 - DSPK | 20 x 9.5 | 5-120 | 37 | 26.1 | PFS | $1,475.00 |
| LM 238 - DBPK | 20 x 9.5 | 5-114.3 | 40 | 26.1 | 66 | $1,475.00 |
| LM 238 - DSPK | 20 x 9.5 | 5-114.3 | 40 | 26.1 | 66 | $1,475.00 |
| LM 239 - DBPK | 20 x 10.5 | 5-114.3 | 20 | 26.3 | 66 | $1,560.00 |
| LM 239 - DSPK | 20 x 10.5 | 5-114.3 | 20 | 26.3 | 66 | $1,560.00 |
| LM 256 - DSPK | 20 x 10 | 5-120 | 45 | PFS | $1,490.00 | |
| LM 273 - DBPK | 20 x 8.5 | 5-112 | 38 | PFS | $1,420.00 | |
| LM 273 - DSPK | 20 x 8.5 | 5-112 | 38 | PFS | $1,420.00 | |
| LM 283 - DBPK | 20 x 9 | 5-120 | 20 | 26.4 | PFS | $1,440.00 |
| LM 283 - DSPK | 20 x 9 | 5-120 | 20 | 26.4 | PFS | $1,440.00 |
| LM 284 - DBPK | 20 x 10 | 5-120 | 33 | 26.8 | PFS | $1,490.00 |
| LM 284 - DSPK | 20 x 10 | 5-120 | 33 | 26.8 | PFS | $1,490.00 |
| LM 289 - DSPK | 20 x 9 | 5-114.3 | 40 | PFS | $1,440.00 | |
| LM 291 - DBPK | 20 x 9.5 | 5-112 | 36 | 28.4 | PFS | $1,475.00 |
| LM 291 - DSPK | 20 x 9.5 | 5-112 | 36 | 28.4 | PFS | $1,475.00 |
| LM 297 - DBPK | 20 x 10.5 | 5-120 | 15 | 28.8 | PFS | $1,560.00 |
| LM 297 - DSPK | 20 x 10.5 | 5-120 | 15 | 28.8 | PFS | $1,560.00 |
| LM 407 - DBPK | 20 x 9 | 5-112 | 25 | 28 | PFS | $1,440.00 |
| LM 407 - DSPK | 20 x 9 | 5-112 | 25 | 28 | PFS | $1,440.00 |
| LM 408 - DBPK | 20 x 10 | 5-112 | 38 | 28.7 | PFS | $1,490.00 |
| LM 408 - DSPK | 20 x 10 | 5-112 | 38 | 28.7 | PFS | $1,490.00 |
| LM 436 - DBPK | 20 x 10 | 5-112 | 22 | PFS | $1,490.00 | |
| LM 436 - DSPK | 20 x 10 | 5-112 | 22 | PFS | $1,490.00 | |
| LM 436 - GPK | 20 x 10 | 5-112 | 22 | PFS | $1,490.00 | |
| LM 436 - DB-DB | 20 x 10 | 5-112 | 22 | PFS | $1,490.00 | |
| LM 436 - MBZ | 20 x 10 | 5-112 | 22 | PFS | $1,540.00 | |
| LM 437 - DBPK | 20 x 11 | 5-112 | 24 | PFS | $1,580.00 | |
| LM 437 - DSPK | 20 x 11 | 5-112 | 24 | PFS | $1,580.00 | |
| LM 437 - GPK | 20 x 11 | 5-112 | 24 | PFS | $1,580.00 | |
| LM 437 - DB-DB | 20 x 11 | 5-112 | 24 | PFS | $1,580.00 | |
| LM 437 - MBZ | 20 x 11 | 5-112 | 24 | PFS | $1,630.00 | |
| LM 451 - DBPK | 20 x 9 | 5-114.3 | 28 | PFS | $1,440.00 | |
| LM 451 - DSPK | 20 x 9 | 5-114.3 | 28 | PFS | $1,440.00 | |
| LM 452 - DBPK | 20 x 10.5 | 5-114.3 | 35 | PFS | $1,560.00 | |
| LM 452 - DSPK | 20 x 10.5 | 5-114.3 | 35 | PFS | $1,560.00 | |
| LM 260 - DBPK | 21 x 9 | 5-120 | 32 | 28.7 | PFS | $1,720.00 |
| LM 260 - DSPK | 21 x 9 | 5-120 | 32 | 28.7 | PFS | $1,720.00 |
| LM 261 - DBPK | 21 x 10 | 5-120 | 38 | PFS | $1,770.00 | |
| LM 261 - DSPK | 21 x 10 | 5-120 | 38 | PFS | $1,770.00 | |
| LM 409 - DBPK | 21 x 9 | 5-112 | 22 | 29.4 | PFS | $1,720.00 |
| LM 409 - DSPK | 21 x 9 | 5-112 | 22 | 29.4 | PFS | $1,720.00 |
| LM 410 - DBPK | 21 x 10 | 5-112 | 40 | 29.4 | PFS | $1,770.00 |
| LM 410 - DSPK | 21 x 10 | 5-112 | 40 | 29.4 | PFS | $1,770.00 |
